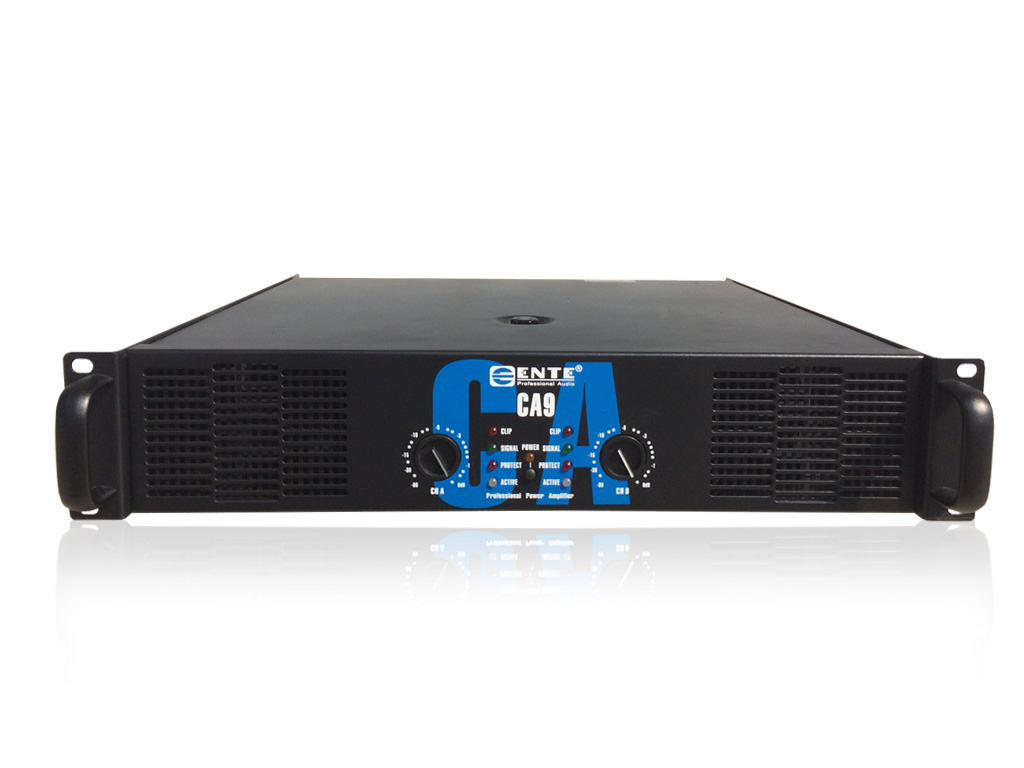

CA-9

Details:
CA series products have the choice of 2 u 3 u high, and 150 w ~ 1300 w power range, the CA series after is faster reaction rate, higher damping coefficient, more features, more advanced protection system, SMD production technology, sophisticated components. CA series amplifiers can withstand the stereo 2 4 Ω Ω, bridge load, suitable for driving linear array speaker system.
* 8 Ω stereo output power: 650 w * 2
* 4 Ω stereo output power: 780 w * 2
* 2 Ω stereo output power: 1040 w * 2
* 8 Ω bridge mono output: 1560 w
* bridge mono output Ω: 2080 w
* frequency response: 20 hz - 20 KHZ + 0/0.3 db
* total harmonic distortion: < 8 Ω 0.0.3 % @ 1 KHZ
* signal-to-noise ratio: > 95 db
* transient response: 30 v/u s
* damping coefficient: > 400
* crosstalk: > 70 db @ 8 Ω 1 KHZ
* input impedance: 20 k Ω (Balance) / 10 k Ω (Unbalance)
* input sensitivity: 0.775 V / 1.1 V / 1.4 V
* protection: Overheat short circuits, DC, limit the and - softstart, the Output relay - Zero Current Switch, Intellctuel Clip limiter
* height: 2 u
27 kg * gross weight:
* size 590 * 570 * 150 mm
