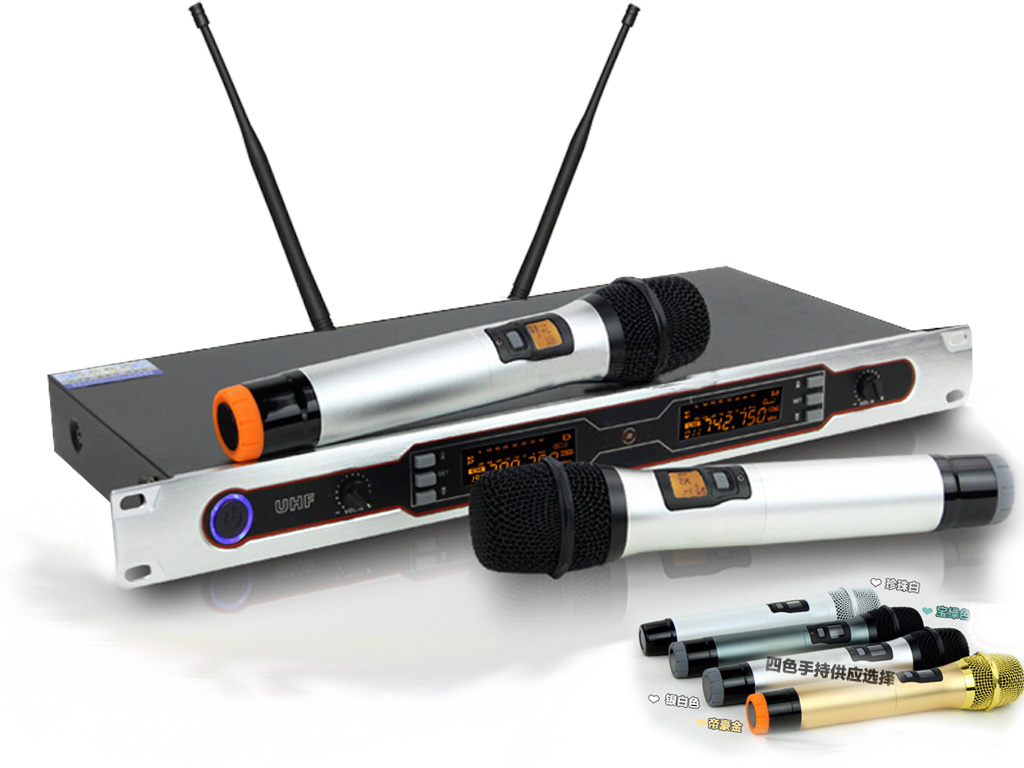

AE2828 frequency (infrared)
Details:
Hand-held color optional: black, purple, gold, iron ash I.
Does the carrier frequencies: UHF600 ~ 970 MHZ
Does modulation mode: broadband FM
Does receive mode: secondary superheterodyne
Does oscillation mode: PLL phase locking frequency synthesis
Does the radio frequency stability: plus or minus 0.005% (10 ~ 50 ℃)
Does the receiving sensitivity: in deviation degree is equal to 40 KHZ, input 6 db mu V, S/N > 80 db
Does maximum deviation degree: + 68 KHZ have volume expansion band width: 50 MHZ
Does the frequency interval of 250 KHZ
Does the swappable frequency count: 200
Does the default channel: 200 comprehensive S/N ratio: > 105 db (A) comprehensive T.H.D. : < 0.5% @ 1 KHZ
Does comprehensive frequency response: 50 hz ~ 18 KHZ plus or minus 3 db, with low frequency attenuation and frequency circuit
Does the output socket: BNC
Does the panel display: LCD
Does the frequency adjustment: the ACT of infrared frequency
Does the AC power supply of 220 v
Does the carrier frequencies: UHF600 ~ 970 MHZ
Does the harmonic radiation: < - 55 DBC
Does maximum deviation degree: + 68 KHZ with volume expansion
Does the sound: moving coil is used
Does the battery: two 5 batteries
Does the current consumption: high-power 125 ma small power 90 ma
Does the frequency adjustment: ACT on infrared frequency operation, full digital pilot
Does display: LCD
